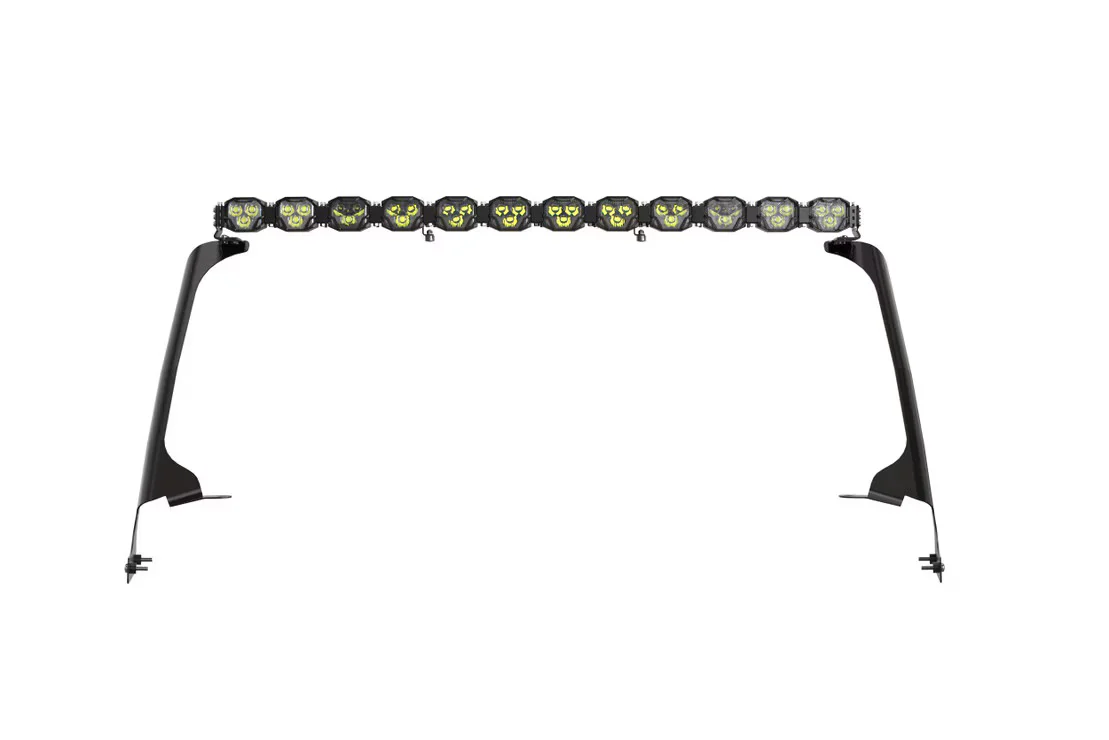

Morimoto Jeep Gladiator (2020+) 4Banger Light Bar System

Product image 1
1 / 8
+3

Morimoto Jeep Gladiator (2020+) 4Banger Light Bar System

Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket...Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our Jeep Gladiator roof-mount LED 4Banger Bar system continues that tradition as a turn-key LED light bar, where you specify the power, the color, and then you destroy the darkness. Mounting brackets made for the 2020+ Gladiator are included, as is a complete wire harness. Let's roll!

FEATURES & BENEFITS

  • Bolt-On: Powdercoated steel brackets designed especially for the Gladiator pair with CNC machined hardware on the Banger Bar make for an easy yet bulletproof installation.
  • Maximum Output: The 4Banger Bar is the brightest light bar in its class on the market for the Jeep Gladiator, and available in two performance tiers.
  • Optimized: Incredible output from our spot, combo, and wide beam optics and are available in either white or yellow.
  • No Compromise: Produced from the best materials, lab-tasted for compliance with all performance and safety standards, they are backed with a lifetime warranty.
  • USA: Completely designed, engineered, tested and distributed by Morimoto, here in the USA.

WHAT’S INCLUDED

  • Windshield Brackets : 2x Brackets (One Left and One Right)

  • LED Pods : 12x Morimoto 4Banger (Optional Color / Model)

  • Bar Hardware : 2x Mounting Feet, 2x Middle Support Legs, 11x Pod-Links

  • Wiring : 1x Switched Power Relay Harness (BAF131H)

  • Hardware : 2x M6 Spacers, 4x M8x1.25 35mm SS Screws, 4x M6x1.0 12mm SS Screws, 4x M6 11mm SS Washers, 2x M6 18mm SS Washers, 2x M6x1.0 50mm SS Screws, 2x 5mm Spacers, 1x Rubber Cushioned Cable Clamp

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

COMPATIBILITY

  • Jeep Wrangler JL : 2018+*

  • *Note : Not compatible with 4XE, Mojave, or 392 models due to a different cowl design.

  • Ditch Light Brackets : Fully compatible with Morimoto ditch light brackets (BAF036)

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw) : 16,200lm (NCS), 36,000lm (HXB)

  • Intensity (HXB White) : 897,600 Cd (8,976 lux @ 10m)

  • Intensity (HXB Dual Color) : 866,800 Cd (8,668 lux @ 10m)

  • Intensity (HXB Yellow) : 624,400 Cd (6,244 lux @ 10m)

  • Intensity (NCS White) : 600,600 Cd (6,006 lux @ 10m)

  • Intensity (NCS Dual Color) : 577,720 Cd (5,778 lux @ 10m)

  • Intensity (NCS Yellow) : 414,820 Cd (4,148 lux @ 10m)

  • Power (stabilized) : 187.2w (NCS), 504.0w (HXB)

  • Current (amps @ 13.5V DC) : 18.00A (NCS), 38.40A (HXB)

LINE DRAWINGS
