Morimoto Jeep Gladiator (2020+) BigBanger Light Bar System

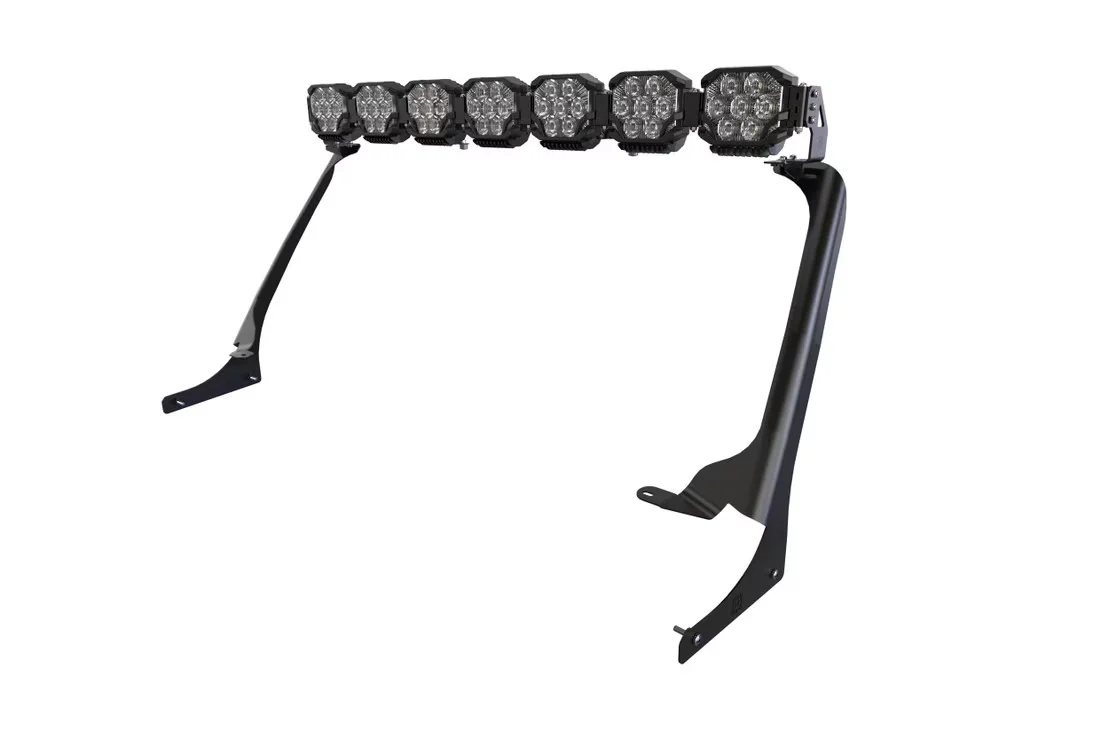

Product image 1
1 / 7
+2

Morimoto Jeep Gladiator (2020+) BigBanger Light Bar System

Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket...Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our Jeep Gladiator roof-mount LED BigBanger Bar system continues that tradition as a turn-key LED light bar, where you specify the power, the color, and then you destroy the darkness. Mounting brackets made for the 2020+ Gladiator are included, as is a complete wire harness. Let's roll!

FEATURES & BENEFITS

  • Bolt-On: Powdercoated steel brackets designed especially for the Gladiator pair with CNC machined hardware on the Banger Bar make for an easy yet bulletproof installation.
  • Maximum Output: The BigBanger Bar is the brightest light bar in its class on the market for the Jeep Gladiator, and available in two performance tiers.
  • Optimized: Incredible output from our spot and combo beam optics and are available in either white or yellow.
  • No Compromise: Produced from the best materials, lab-tasted for compliance with all performance and safety standards, they are backed with a lifetime warranty.
  • USA: Completely designed, engineered, tested and distributed by Morimoto, here in the USA.

WHAT’S INCLUDED

  • Windshield Brackets : 2x Brackets (One Left and One Right)

  • LED Pods : 7x Morimoto BigBanger (Optional Color / Model)

  • Bar Hardware : 2x Low-Pro Mounting Feet, 1x Low-Pro Middle Support Legs, 6x Pod-Links

  • Wiring : 1x Switched Power Relay Harness (BAF133H)

  • Hardware : 2x M6 Spacers, 4x M8x1.25 35mm SS Screws, 4x M6x1.0 12mm SS Screws, 4x M6 11mm SS Washers, 2x M6 18mm SS Washers, 2x M6x1.0 50mm SS Screws, 2x 5mm Spacers, 1x Rubber Cushioned Cable Clamp

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.  In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

COMPATIBILITY

  • Jeep Wrangler JL : 2018+*

  • *Note : Not compatible with 4XE, Mojave, or 392 models due to a different cowl design.

  • Ditch Light Brackets : Fully compatible with Morimoto ditch light brackets (BAF036)

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw) : 22,050lm (NCS), 49,000lm (HXB)

  • Intensity (HXB White) : 2,120,000 Cd (21,200 lux @ 10m)

  • Intensity (HXB Dual Color) : 1,860,000 Cd (18,600 lux @ 10m)

  • Intensity (NCS White) : 1,535,000 Cd (15,350 lux @ 10m)

  • Intensity (NCS Dual Color) : 1,372,500 Cd (13,725 lux @ 10m)

  • Intensity (NCS Yellow) : 992,500 Cd (9,925 lux @ 10m)

  • Power (stabilized) : 255.5w (NCS), 539.0w (HXB)

  • Current (amps @ 13.5V DC) : 19.21A (NCS), 38.88A (HXB)

LINE DRAWINGS

Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket...Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our Jeep Gladiator roof-mount LED BigBanger Bar system continues that tradition as a turn-key LED light bar, where you specify the power, the color, and then you destroy the darkness. Mounting brackets made for the 2020+ Gladiator are included, as is a complete wire harness. Let's roll!

FEATURES & BENEFITS

  • Bolt-On: Powdercoated steel brackets designed especially for the Gladiator pair with CNC machined hardware on the Banger Bar make for an easy yet bulletproof installation.
  • Maximum Output: The BigBanger Bar is the brightest light bar in its class on the market for the Jeep Gladiator, and available in two performance tiers.
  • Optimized: Incredible output from our spot and combo beam optics and are available in either white or yellow.
  • No Compromise: Produced from the best materials, lab-tasted for compliance with all performance and safety standards, they are backed with a lifetime warranty.
  • USA: Completely designed, engineered, tested and distributed by Morimoto, here in the USA.

WHAT’S INCLUDED

  • Windshield Brackets : 2x Brackets (One Left and One Right)

  • LED Pods : 7x Morimoto BigBanger (Optional Color / Model)

  • Bar Hardware : 2x Low-Pro Mounting Feet, 1x Low-Pro Middle Support Legs, 6x Pod-Links

  • Wiring : 1x Switched Power Relay Harness (BAF133H)

  • Hardware : 2x M6 Spacers, 4x M8x1.25 35mm SS Screws, 4x M6x1.0 12mm SS Screws, 4x M6 11mm SS Washers, 2x M6 18mm SS Washers, 2x M6x1.0 50mm SS Screws, 2x 5mm Spacers, 1x Rubber Cushioned Cable Clamp

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.  In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

COMPATIBILITY

  • Jeep Wrangler JL : 2018+*

  • *Note : Not compatible with 4XE, Mojave, or 392 models due to a different cowl design.

  • Ditch Light Brackets : Fully compatible with Morimoto ditch light brackets (BAF036)

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw) : 22,050lm (NCS), 49,000lm (HXB)

  • Intensity (HXB White) : 2,120,000 Cd (21,200 lux @ 10m)

  • Intensity (HXB Dual Color) : 1,860,000 Cd (18,600 lux @ 10m)

  • Intensity (NCS White) : 1,535,000 Cd (15,350 lux @ 10m)

  • Intensity (NCS Dual Color) : 1,372,500 Cd (13,725 lux @ 10m)

  • Intensity (NCS Yellow) : 992,500 Cd (9,925 lux @ 10m)

  • Power (stabilized) : 255.5w (NCS), 539.0w (HXB)

  • Current (amps @ 13.5V DC) : 19.21A (NCS), 38.88A (HXB)

LINE DRAWINGS

Select Outer Pods (4x Combo)
Select Inner Pods (2x Spot)
From $1,426.60

Original: $4,076.00

-65%
Morimoto Jeep Gladiator (2020+) BigBanger Light Bar System—

$4,076.00

$1,426.60

Description

Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket...Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our Jeep Gladiator roof-mount LED BigBanger Bar system continues that tradition as a turn-key LED light bar, where you specify the power, the color, and then you destroy the darkness. Mounting brackets made for the 2020+ Gladiator are included, as is a complete wire harness. Let's roll!

FEATURES & BENEFITS

  • Bolt-On: Powdercoated steel brackets designed especially for the Gladiator pair with CNC machined hardware on the Banger Bar make for an easy yet bulletproof installation.
  • Maximum Output: The BigBanger Bar is the brightest light bar in its class on the market for the Jeep Gladiator, and available in two performance tiers.
  • Optimized: Incredible output from our spot and combo beam optics and are available in either white or yellow.
  • No Compromise: Produced from the best materials, lab-tasted for compliance with all performance and safety standards, they are backed with a lifetime warranty.
  • USA: Completely designed, engineered, tested and distributed by Morimoto, here in the USA.

WHAT’S INCLUDED

  • Windshield Brackets : 2x Brackets (One Left and One Right)

  • LED Pods : 7x Morimoto BigBanger (Optional Color / Model)

  • Bar Hardware : 2x Low-Pro Mounting Feet, 1x Low-Pro Middle Support Legs, 6x Pod-Links

  • Wiring : 1x Switched Power Relay Harness (BAF133H)

  • Hardware : 2x M6 Spacers, 4x M8x1.25 35mm SS Screws, 4x M6x1.0 12mm SS Screws, 4x M6 11mm SS Washers, 2x M6 18mm SS Washers, 2x M6x1.0 50mm SS Screws, 2x 5mm Spacers, 1x Rubber Cushioned Cable Clamp

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.  In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

COMPATIBILITY

  • Jeep Wrangler JL : 2018+*

  • *Note : Not compatible with 4XE, Mojave, or 392 models due to a different cowl design.

  • Ditch Light Brackets : Fully compatible with Morimoto ditch light brackets (BAF036)

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw) : 22,050lm (NCS), 49,000lm (HXB)

  • Intensity (HXB White) : 2,120,000 Cd (21,200 lux @ 10m)

  • Intensity (HXB Dual Color) : 1,860,000 Cd (18,600 lux @ 10m)

  • Intensity (NCS White) : 1,535,000 Cd (15,350 lux @ 10m)

  • Intensity (NCS Dual Color) : 1,372,500 Cd (13,725 lux @ 10m)

  • Intensity (NCS Yellow) : 992,500 Cd (9,925 lux @ 10m)

  • Power (stabilized) : 255.5w (NCS), 539.0w (HXB)

  • Current (amps @ 13.5V DC) : 19.21A (NCS), 38.88A (HXB)

LINE DRAWINGS
